Product Specifications

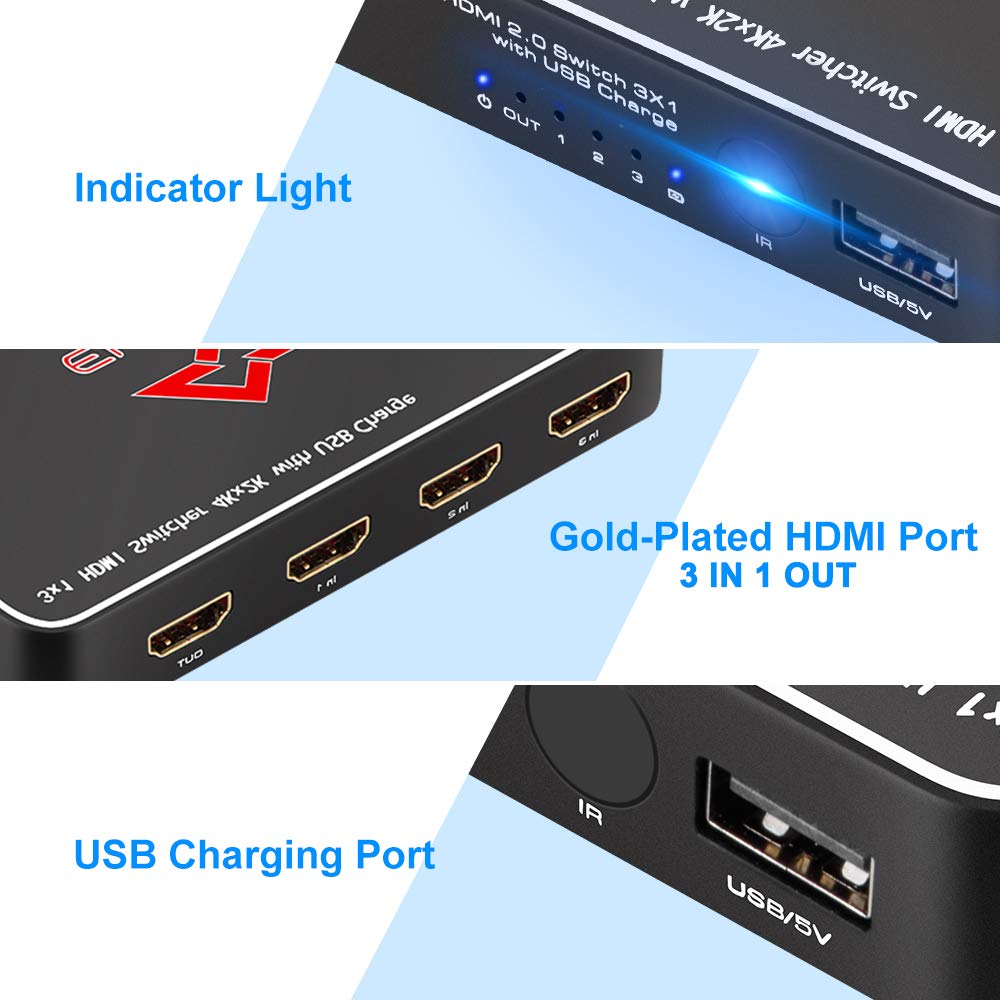

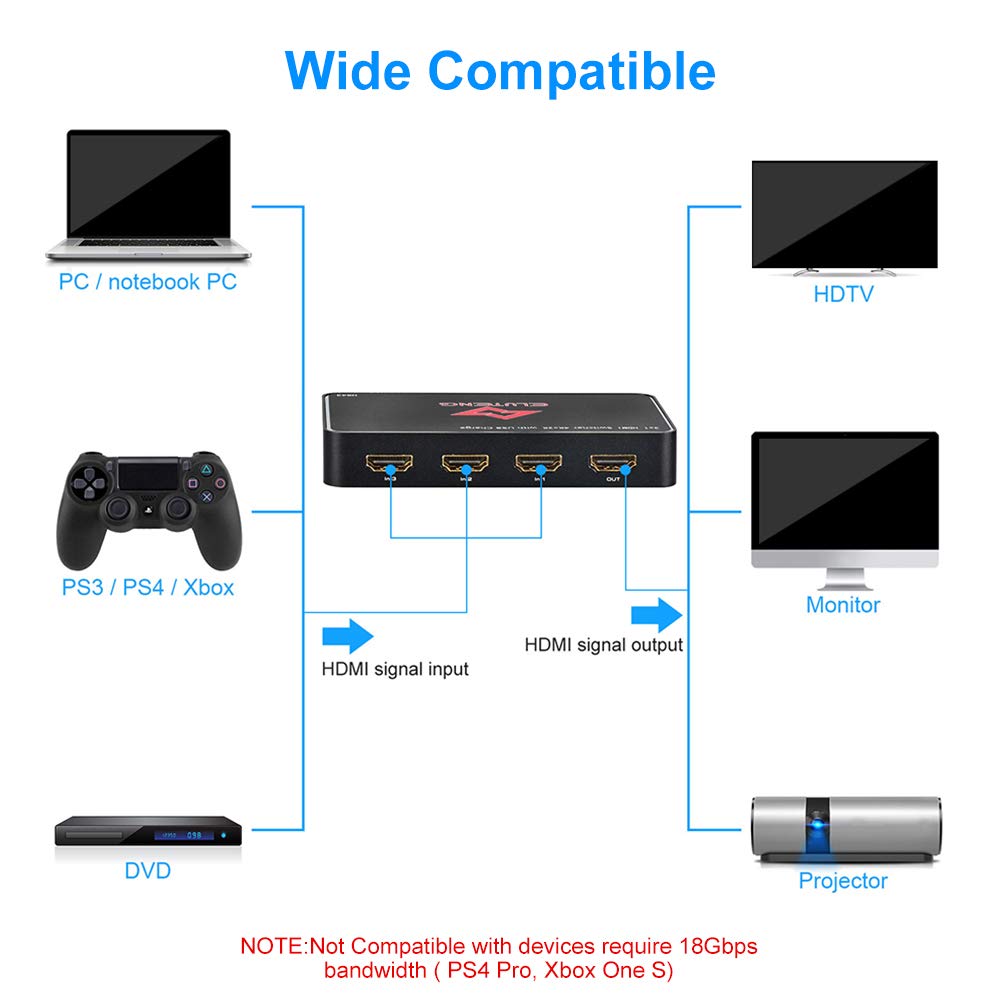

Input ports: 3xHDMI(Female type)

Output port: 1xHDMI(Female type)

Input / Output Interface: HDMI 2.0

USB Output Port: Support Power charge

HDMI Splitter, with PIP ( picture in picture )function

Remote controller Support: IR and Panel button control

Audio support : LPCM 7.1CH, Dolby True Hd and DTS-HD Master Audio

With SPDIF & R/L audio extract.

SPDIF Output supports up to 5.1CH Dolby Digital, DTS Audio;

Analog RCA output supports 2CH PCM stereo audio

Three Audio EDID settings: 2.0CH/5.1CH/Auto.

HDCP & CEC pass through.

Support HDMI2.0, HDCP 1.4, 4:2:0

Video resolution : up to 4k x 2k/60Hz

3D format support: up to 1080P/60Hz

Product dimension: 116mm*64mm*20mm

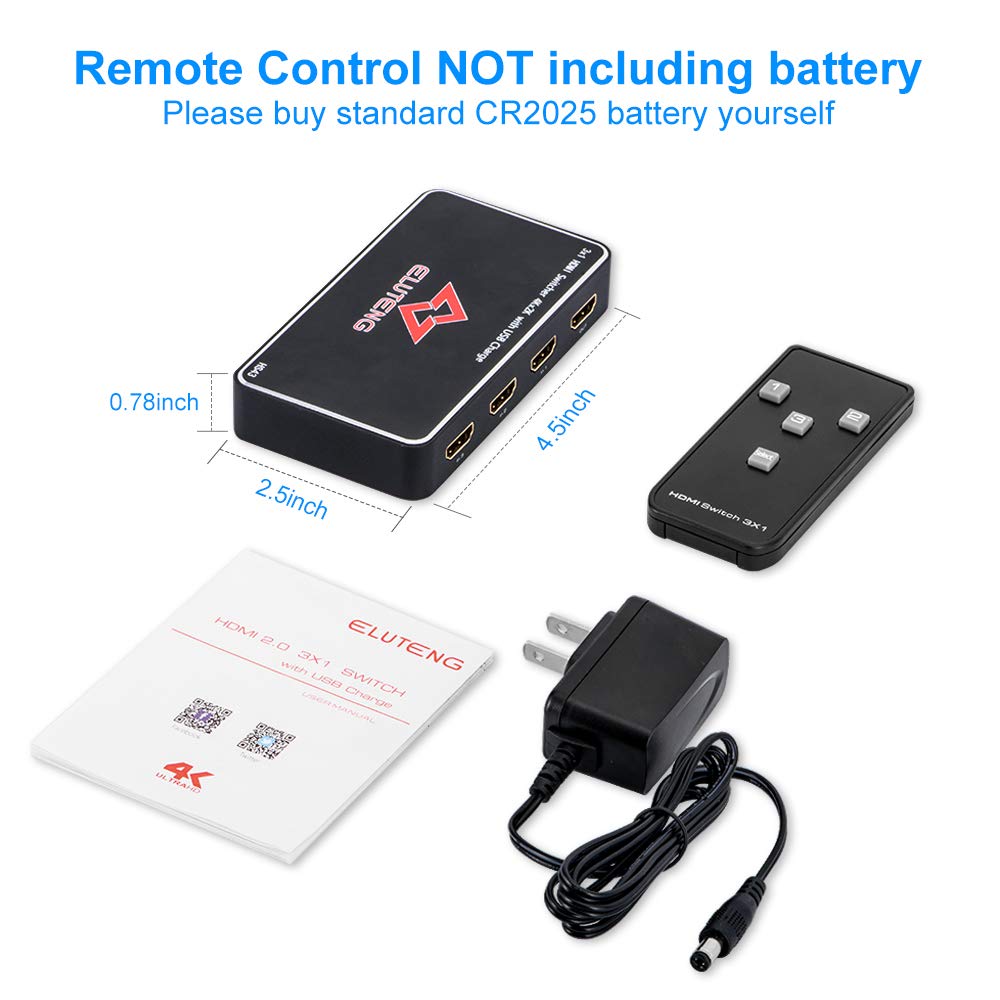

Package:

1* HDMI Switcher 3 in 1 out

1* DC Adapter

1* IR remote controller

1* User manual
